ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)

• Bluetooth® for phone connectivity to vehicle infotainment system
• Wireless phone projection for Apple CarPlay and Android Auto
• Audio system
• GMC Infotainment System with 7 diagonal color touch-screen AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Audio system feature
• 6-speaker system (Requires Crew Cab or Double Cab model.)
• Bed Step
• Black integrated on forward portion of bed on driver and passenger side
• Taillamps
• LED Signature Tail
• Incandescent Brake
• Turn & Reverse Lamps
• CornerStep
• rear bumper
• Glass
• solar absorbing
• tinted
• Capless Fuel Fill (Requires (L8T) 6.6L gas V8 engine. Not included with (ZW9) pickup bed delete.)
• Tailgate
• standard
• Cargo tie downs (12)
• fixed
• rated at 500 lbs per corner
• Mirrors
• outside high-visibility vertical trailering lower convex mirrors
• manual-folding/extending (extends 3.31 [84.25mm])
• molded in Black (Not available on Regular Cab models.)
• Moldings
• beltline
• Black
• Bumper
• front chrome lower
• Wheels
• 17 (43.2 cm) painted steel
• Silver
• Door handles
• Black grained
• Lamps
• cargo area cab mounted integrated with center high mount stop lamp
• with switch in bank on left side of steering wheel
• Tailgate
• gate function manual
• no lift assist
• Headlamps
• Animated LED projectors LED turn signals and Daytime Running Lamps
• Tire
• spare LT245/75R17E all-season
• blackwall (Included and only available with (QHQ) LT245/75R17E all-season
• blackwall tires with (E63) pickup bed models. Available to order when (ZW9) pickup bed delete and (QHQ) LT245/75R17E all-season
• blackwall tires are ordered.)
• Tailgate
• locking
• utilizes same key as ignition and door (Included and only available with (QK1) standard tailgate. Deleted with (ZW9) pickup bed delete.)
• Grille (Chrome with flat black grille insert bars.)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Watts: N/A
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): 4023
• Curb Weight - Rear (lbs): 2822
• Gross Vehicle Weight Rating Cap (lbs): 10450
• Gross Combined Wt Rating (lbs): 24500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4600
• Maximum Trailering Capacity (lbs): 20000
• Suspension
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Multi-Leaf Springs
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 2.01
• Shock Absorber Diameter - Rear (mm): 2.01
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZHQ
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.7
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 159
• Length, Overall (in): 250.75
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 79.82
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 42.17
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.12
• Ground Clearance, Rear (in): 10.12
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.2
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 51.85
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 69.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24
• Summary

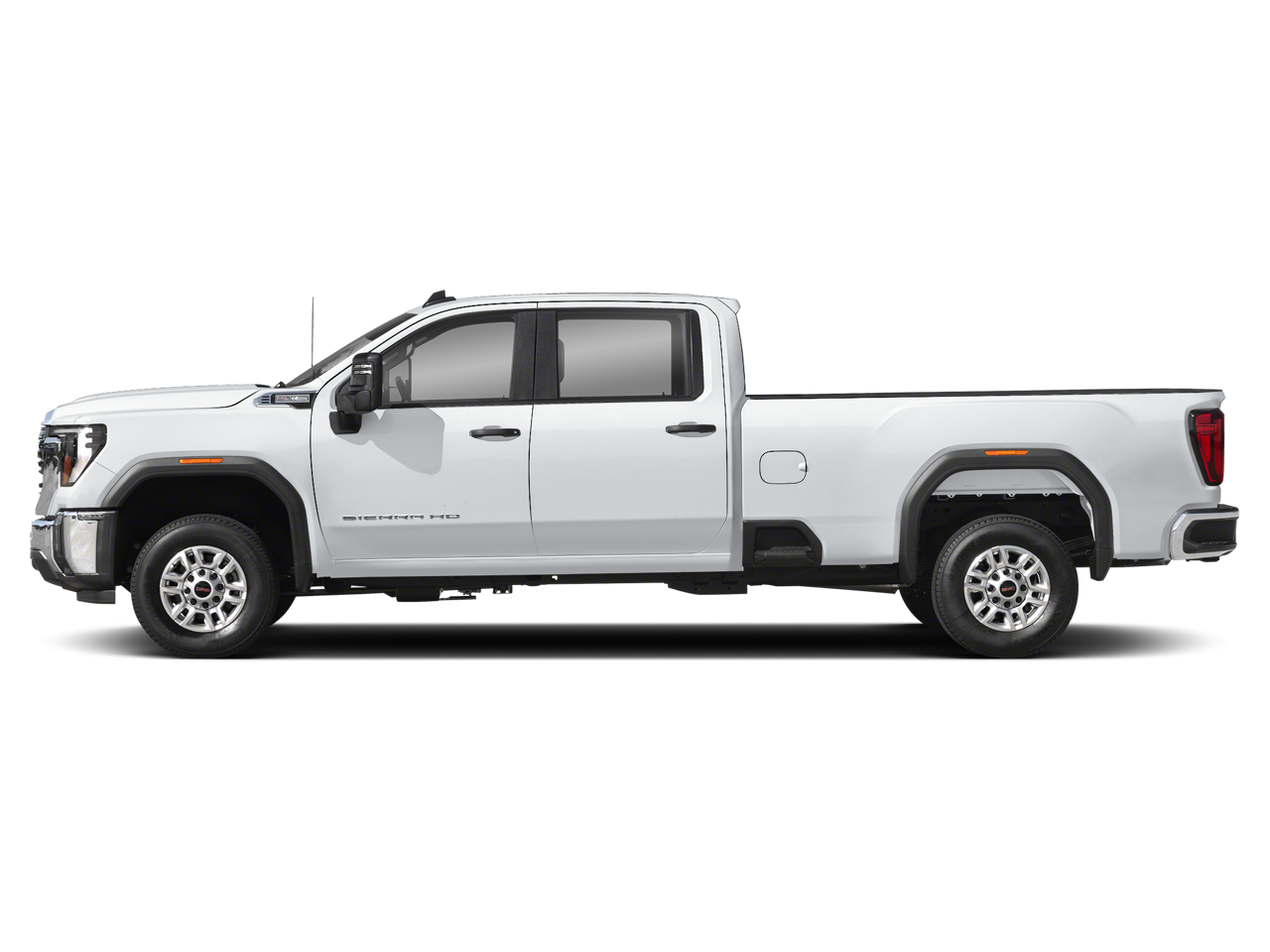

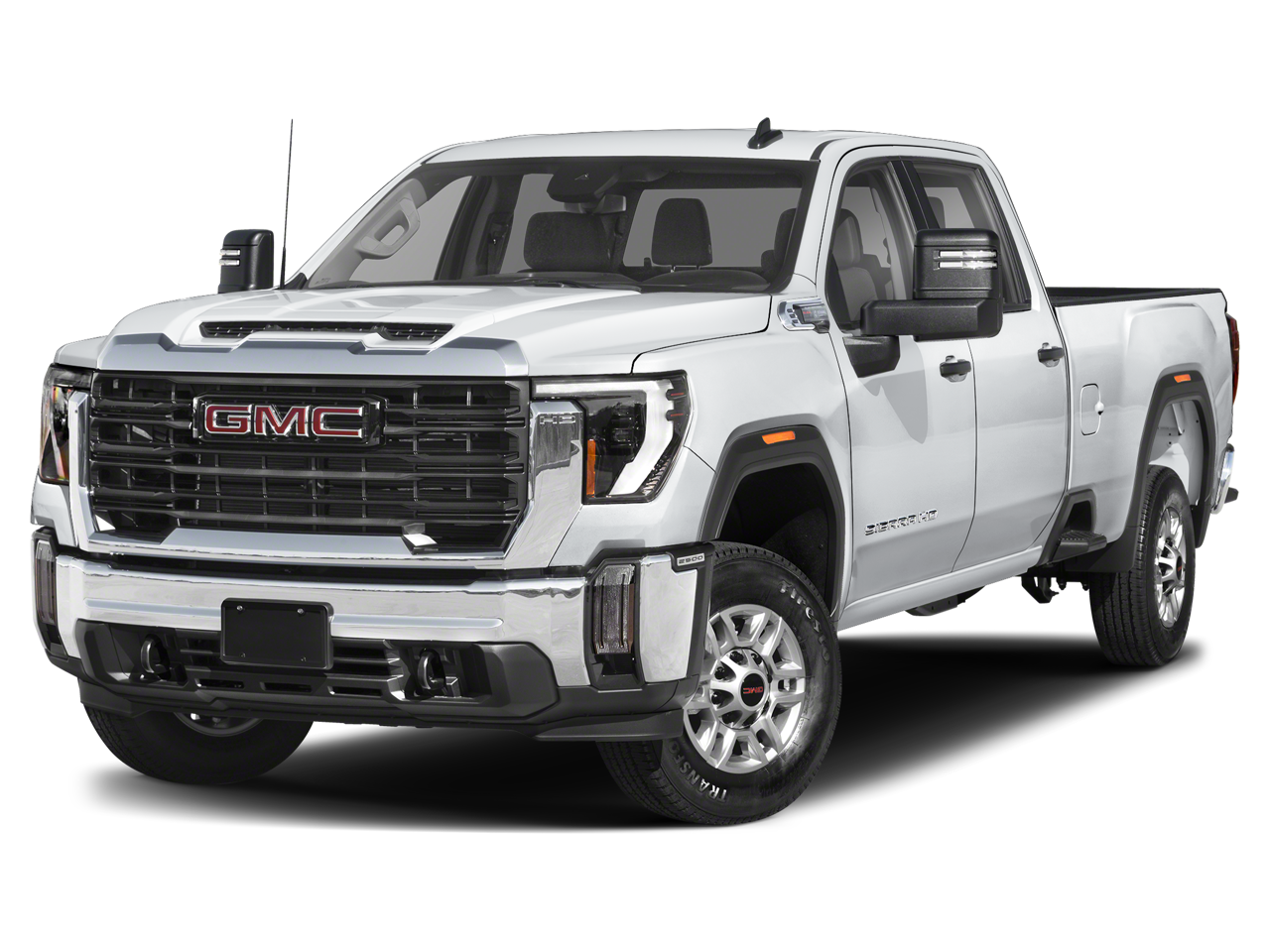

• Vehicle Name: GMC Sierra 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
